Car dashboard symbols give drivers quick information about the vehicle’s condition. Some lights simply show that a feature is active, while others warn about a problem that may need attention. Understanding these symbols can help you react appropriately instead of guessing what a light means.
This guide covers common car dashboard symbols with names, meanings, and easy-to-understand descriptions. It also includes manufacturer-specific sections for Toyota, Nissan, Hyundai, Ford, and Mazda, along with useful information about diesel warning lights, engine lights, bulb failures, and stop-start systems.
Dashboard symbols can vary slightly between vehicles, trims, model years, and markets. A red warning light generally deserves more immediate attention than an amber or yellow light, while green and blue indicators commonly show that a feature or system is operating. Always check your vehicle’s owner’s manual for the exact meaning of a symbol in your car.

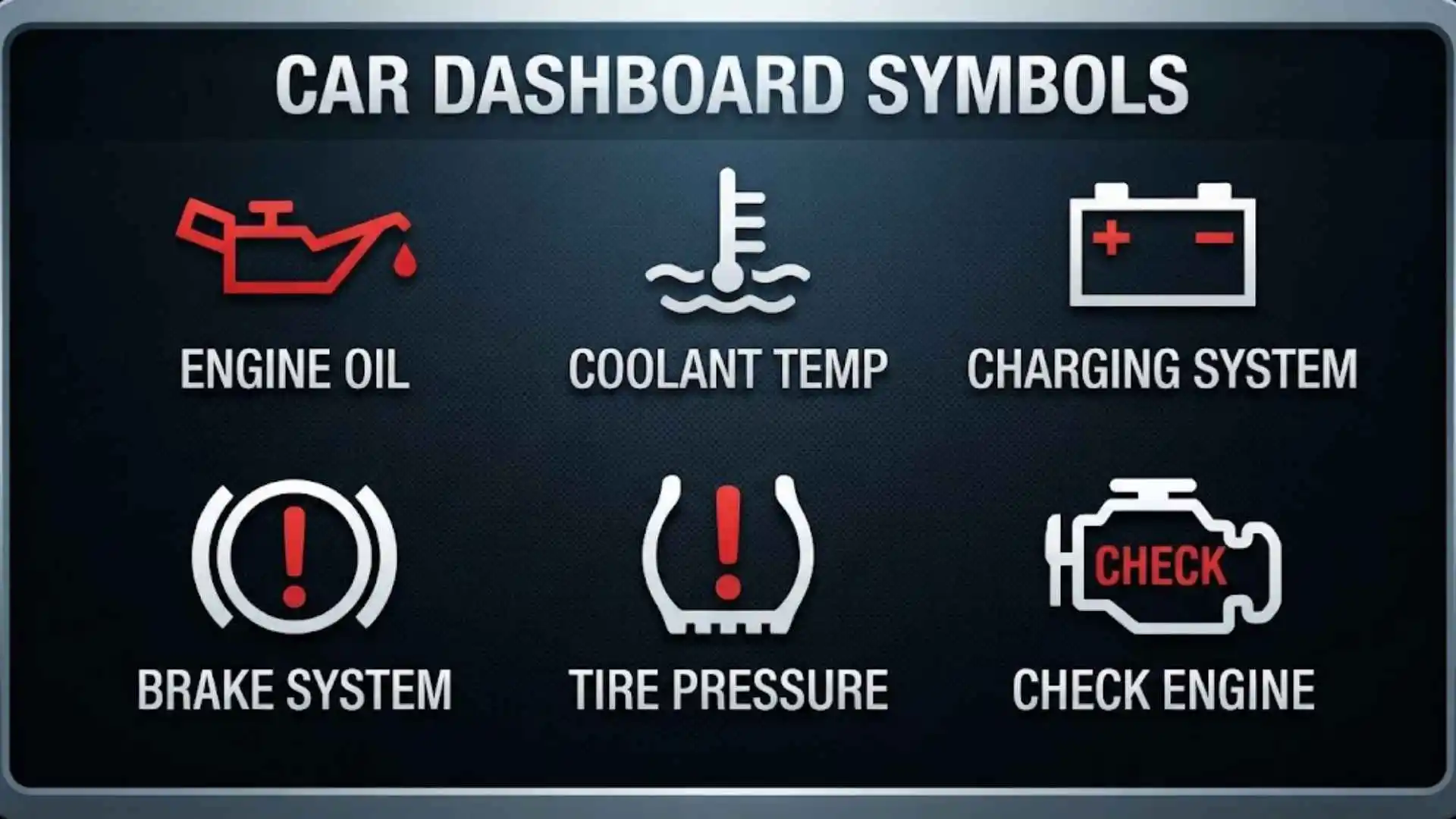

Car dashboard symbols and meanings
Car dashboard symbols are visual indicators displayed on the instrument cluster. They can tell you about safety systems, engine operation, fluids, lighting, braking, temperature, tire pressure, and other vehicle functions.
The color of a dashboard light often provides the first clue about its importance:
| Color | Common purpose |
| 🔴 Red | Serious warning or condition requiring prompt attention |
| 🟠 Amber/Yellow | Warning, fault, or system requiring inspection |
| 🟢 Green | System or feature is operating or active |
| 🔵 Blue | Informational indicator, often related to lighting |
Common dashboard symbols include:
| Symbol | Name | Common meaning |
| 🛢️ | Oil pressure warning | Low engine oil pressure or an oil-system problem |
| 🌡️ | Engine coolant temperature | Engine temperature may be too high |
| 🔋 | Battery/charging warning | Charging system may have a fault |
| ⚙️ | Transmission warning | Possible transmission or drivetrain issue |
| 🚗 | Vehicle indicator | General vehicle or driving-system information |
| ! | General warning | A warning message or system issue may require attention |
| 🅿️ | Parking brake | Parking brake is applied or a brake-system warning is present |
| ABS | ABS warning | Anti-lock braking system may have a fault |
| 🛞 | Tire pressure | Tire pressure may be low or the tire-pressure system may need attention |
| ⛽ | Fuel warning | Fuel level is low |
| 🔧 | Service indicator | Maintenance or service may be due |
The exact appearance of these indicators differs between vehicles. Some dashboard pictograms also contain a symbol that is difficult to reproduce as plain text, so the owner’s manual remains the most accurate reference.
Car dashboard symbols with names
Knowing the name of a dashboard symbol makes it easier to search for its meaning or find the correct information in a vehicle manual.
Some of the most commonly encountered names are:
- Engine warning light — Indicates that the engine or emissions system has detected a fault.
- Oil pressure warning light — Warns about low engine oil pressure or a related lubrication problem.
- Battery warning light — Usually relates to the vehicle’s charging system.
- Coolant temperature warning light — Indicates that the engine temperature may be too high.
- Brake warning light — Can indicate an applied parking brake, low brake fluid, or another brake-system issue depending on the vehicle.
- ABS warning light — Indicates a possible fault in the anti-lock braking system.
- Tire pressure warning light — Indicates low tire pressure or a TPMS-related problem.
- Airbag warning light — Indicates a possible fault in the supplemental restraint system.
- Seat belt reminder — Indicates that a seat belt may not be fastened.
- Traction control indicator — Shows traction-control operation or, in some cases, a system fault.
- High-beam indicator — Shows that the high-beam headlights are switched on.
- Turn signal indicator — Shows that the left or right turn signal is active.
- Fog lamp indicator — Indicates that front or rear fog lamps are switched on.
- Glow plug indicator — Common on diesel vehicles and associated with the glow-plug system.
Car dashboard symbols and meanings with pictures
Many drivers search for dashboard symbols with pictures because recognizing the shape of a warning light is often easier than remembering its name. Although dashboard graphics vary by manufacturer, several designs are widely used.
Common visual dashboard symbols
Oil can symbol 🛢️: Usually associated with engine oil pressure or the lubrication system. A red oil warning light should not be ignored.
Thermometer symbol 🌡️: Commonly relates to engine coolant temperature. If the engine is overheating, safely stopping the vehicle may be necessary.
Battery symbol 🔋: Usually indicates the vehicle’s charging system rather than simply showing the battery’s remaining charge.
Engine-shaped symbol: The familiar engine outline is generally the check-engine or malfunction indicator lamp. It can appear for many different engine or emissions-related faults.
Circle with an exclamation mark: Depending on the vehicle, this may indicate a brake-system warning or a general warning.
Tire-shaped symbol with an exclamation mark: Usually associated with tire pressure monitoring.
Airbag/person symbol: Indicates the airbag or supplemental restraint system.
When comparing a picture online with your dashboard, look at the complete shape and surrounding markings rather than relying on color alone.
Car dashboard symbols with names and meanings
A name tells you what a symbol is called, while its meaning explains what action or information it represents.
| Dashboard symbol | Name | Meaning |
| Engine outline | Check engine | The engine-management or emissions system has detected a fault |
| 🛢️ | Oil pressure | Possible low oil pressure or lubrication-system problem |
| 🔋 | Charging system | The alternator or charging system may not be operating correctly |
| 🌡️ | Coolant temperature | Engine coolant temperature may be too high |
| 🛞 | Tire pressure | One or more tires may have low pressure |
| ABS | Anti-lock braking system | ABS may have detected a fault |
| 👤/belt | Seat belt reminder | A seat belt may not be fastened |
| Airbag/person | Airbag warning | Possible restraint-system fault |
| 🅿️ | Parking brake/brake warning | Parking brake may be engaged or a brake fault may exist |
| Skidding-car icon | Traction/stability control | System may be active or may have detected a fault |
| ⛽ | Low fuel | Fuel level is low |
| 💡 | Lamp warning | A lighting-related problem may have been detected |
Not every vehicle uses exactly the same icon or terminology. The vehicle’s manual should take priority when a symbol appears.

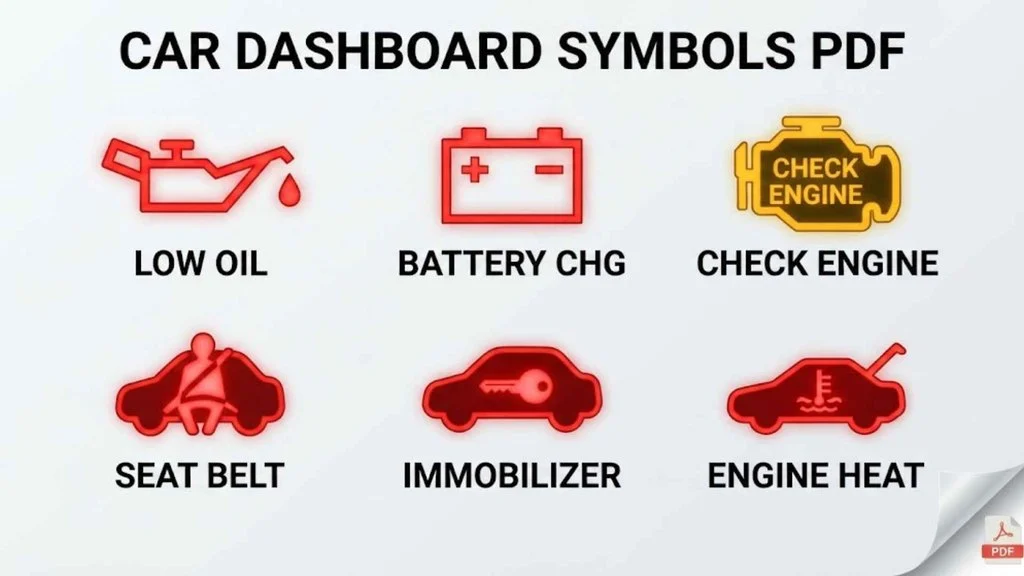

Car dashboard symbols pdf
A PDF reference can be useful when you want to save dashboard information for later. A good dashboard-symbol PDF should ideally contain the symbol, its name, its common meaning, and an indication of whether it represents information, a warning, or a potentially urgent problem.
For a personal reference sheet, you can organize symbols into categories such as:
- Engine and mechanical warnings
- Brake and safety warnings
- Tire and stability systems
- Lighting indicators
- Driver-assistance systems
- Fuel and temperature indicators
- Diesel-specific indicators
- Maintenance and service reminders
For the most accurate PDF reference, use the official manual for your exact vehicle model and model year rather than relying on a generic dashboard-symbol chart.
Toyota car dashboard symbols with names
Toyota vehicles use a wide range of warning and indicator lights. Depending on the model, drivers may encounter symbols for the engine, braking system, tire pressure, hybrid systems, safety features, charging systems, and driver assistance.
Common Toyota dashboard indicators include:
- Check engine indicator — Indicates that the engine-control or emissions system has detected a problem.
- Master warning light — A general warning that may be accompanied by a message.
- Brake system warning — May relate to the braking system or parking brake, depending on the model.
- ABS warning — Indicates a possible anti-lock braking system fault.
- Tire pressure warning — Indicates low tire pressure or a TPMS issue.
- SRS airbag warning — Indicates a possible problem with the restraint system.
- PCS warning — On equipped models, relates to the Pre-Collision System.
- Lane-related indicators — May appear when Toyota Safety Sense or another driver-assistance function is active or unavailable.
- Hybrid system indicators — Hybrid Toyota models can display additional symbols and messages that are not present on conventional gasoline vehicles.
Because Toyota uses different dashboards across its model range, the exact icon and wording can vary.
Toyota car dashboard symbols and meanings
Toyota dashboard warnings can range from simple status indicators to warnings that require immediate attention.
For example, a green indicator generally communicates that a function is operating, while an amber indicator commonly means that a system needs attention or has been temporarily disabled. A red warning generally signals a more serious condition.
Toyota drivers should pay particular attention to warnings involving:
- Brakes
- Engine oil pressure
- Engine coolant temperature
- Charging systems
- Airbags
- Tire pressure
- Hybrid-system faults
- Electronic stability and traction systems
- Driver-assistance systems
If a red warning remains illuminated while driving, follow the instructions displayed on the vehicle and consult the owner’s manual. Do not assume that every red light has the same required response.
Car dashboard symbols Toyota
Toyota dashboard symbols can differ between models such as Corolla, Camry, RAV4, Yaris, Prius, Highlander, Tacoma, and other vehicles.
A Toyota hybrid may have additional indicators for regenerative braking, hybrid-system operation, battery-related information, and energy flow. A Toyota equipped with advanced driver-assistance features may also display symbols connected with lane assistance, collision warnings, radar-related systems, or cruise-control functions.
For accurate identification, compare the symbol with the dashboard illustration in the manual for the exact Toyota model and year. Searching only for a generic “Toyota dashboard symbol” may produce an icon from a different model.
Car dashboard symbols and meanings pdf
A dashboard-symbol PDF is most useful when it is organized for quick reference rather than presented as a long list of unexplained icons.
A practical reference should include:
| Information | Why it helps |
| Symbol image | Makes visual identification easier |
| Symbol name | Helps with further research |
| Meaning | Explains what the warning represents |
| Color | Provides context about urgency |
| Recommended action | Helps the driver decide what to do next |
| Vehicle applicability | Prevents confusion between models |
Generic PDFs are useful for learning common symbols, but they should not replace the manufacturer’s documentation. Different vehicles can use similar symbols for different systems.
Car dashboard symbols and meanings with pictures
Pictures are particularly useful for symbols that do not have an obvious name. For example, a tire-pressure warning icon may look like a horseshoe or tire cross-section with an exclamation mark. A stability-control indicator may show a car with curved skid marks.
When identifying a picture, check three things:
- Shape: Compare the complete pictogram.
- Color: Note whether the indicator is red, amber, green, or blue.
- Behavior: Check whether it remains illuminated, flashes, or appears only briefly during startup.
A warning that flashes can have a different significance from one that remains steadily illuminated. The vehicle’s manual should be used to determine the exact interpretation.
Car dashboard symbols with names
A quick name-based reference can help when you already know what the symbol looks like.
Common names include:
- Check engine light
- Oil pressure warning
- Battery warning
- Coolant temperature warning
- Brake warning
- ABS warning
- Airbag warning
- Tire pressure warning
- Traction control indicator
- Electronic stability control indicator
- Low fuel warning
- High-beam indicator
- Turn signal indicator
- Fog light indicator
- Glow plug indicator
- Parking brake indicator
- Door-open warning
- Seat belt reminder
- Cruise-control indicator
- Lane-departure or lane-keeping indicator
The same general name may be used for systems that work differently across manufacturers, so the model-specific manual is important for precise interpretation.
Car dashboard symbols and names
Dashboard symbols can be grouped into a few simple categories.
Warning symbols
These alert you to a possible problem. Examples include the engine, oil pressure, coolant temperature, brake, battery, and airbag warnings.
Indicator symbols
These normally show that a feature is active. Examples include turn signals, high beams, fog lamps, cruise control, and some driving-mode indicators.
Information symbols
These communicate operating conditions or messages. Examples vary by vehicle and may include fuel economy, outside temperature, or driver-assistance status.
Maintenance symbols
These remind the driver about service requirements or maintenance-related conditions. The exact symbol and reset procedure depend on the vehicle.

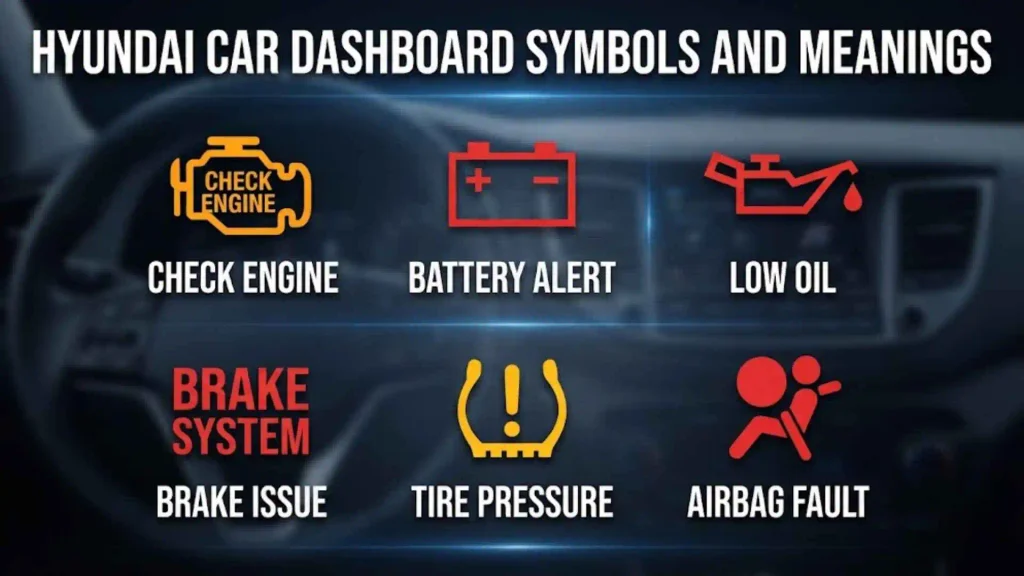

Hyundai car dashboard symbols and meanings
Hyundai dashboards can include warning and indicator lights for the engine, brakes, tire pressure, airbags, charging system, electronic stability control, driver assistance, and other vehicle systems.
Common Hyundai indicators include:
- Malfunction Indicator Lamp: Commonly associated with an engine or emissions-related fault.
- Engine oil pressure warning: Indicates a possible oil-pressure problem.
- Charging system warning: May indicate a charging-system fault.
- ABS warning: Indicates a possible ABS problem.
- Airbag warning: Indicates a possible issue with the restraint system.
- Tire pressure warning: Indicates low tire pressure or a TPMS-related condition.
- Electronic Stability Control indicator: Can show system operation or a system fault, depending on the indicator behavior.
- Forward Safety or driver-assistance warnings: May appear on vehicles equipped with relevant systems.
- Glow indicator: Found on diesel versions and associated with the glow-plug system.
Hyundai models vary considerably, so always match the symbol to the manual for the specific model and year.
All car dashboard symbols
There is no single universal list containing every dashboard symbol used on every car. Manufacturers introduce model-specific icons, especially for hybrid systems, electric vehicles, driver assistance, and advanced safety features.
A broad reference can include these categories:
Engine: Check engine, oil pressure, coolant temperature, glow plug, and service indicators.
Brakes: Brake warning, ABS, electronic parking brake, brake-pad or brake-system indicators where equipped.
Safety: Airbag, seat belt, child restraint, stability control, and traction-control indicators.
Tires: Tire pressure monitoring and tire-related warnings.
Lighting: Turn signals, high beams, low beams, fog lamps, and exterior-light faults.
Driving assistance: Lane keeping, collision warning, adaptive cruise control, blind-spot monitoring, and related system indicators where equipped.
Electric and hybrid systems: High-voltage battery, charging, regenerative braking, and EV-system indicators on applicable vehicles.
Because this category is so broad, the safest approach is to identify the vehicle first and then check the manufacturer’s symbol guide.
Engine light car dashboard symbols and meanings
The engine-shaped check-engine symbol is one of the most recognized dashboard warnings. It is commonly called the check engine light, malfunction indicator lamp, or MIL.
A steady check-engine light can be caused by many different issues, ranging from an emissions-system problem to a sensor or engine-control fault. The light itself does not identify the exact failed component.
A flashing check-engine light can indicate a more serious engine-related condition on some vehicles, particularly when accompanied by rough running or loss of power. Follow the vehicle manufacturer’s instructions and avoid continuing to drive if doing so could cause damage or create a safety risk.
The correct way to determine the cause is to use the vehicle’s diagnostic information, typically through an appropriate diagnostic scan, followed by proper diagnosis.
Diesel car dashboard symbols and meanings
Diesel vehicles use several symbols that may not appear on gasoline-powered cars.
The most recognizable is the glow-plug indicator, commonly shown as a coil-shaped symbol. It can illuminate before starting the engine while the glow-plug system prepares the engine for startup.
Other diesel-related warnings can involve:
- Diesel particulate filter (DPF)
- Diesel exhaust fluid or AdBlue, where applicable
- Fuel-system faults
- Water in the fuel filter
- Engine-management problems
- Exhaust after-treatment systems
The meaning and required action vary considerably by manufacturer. A DPF warning, for example, may have a specific driving procedure described in the vehicle manual. Do not assume that a diesel warning has the same meaning across different brands.

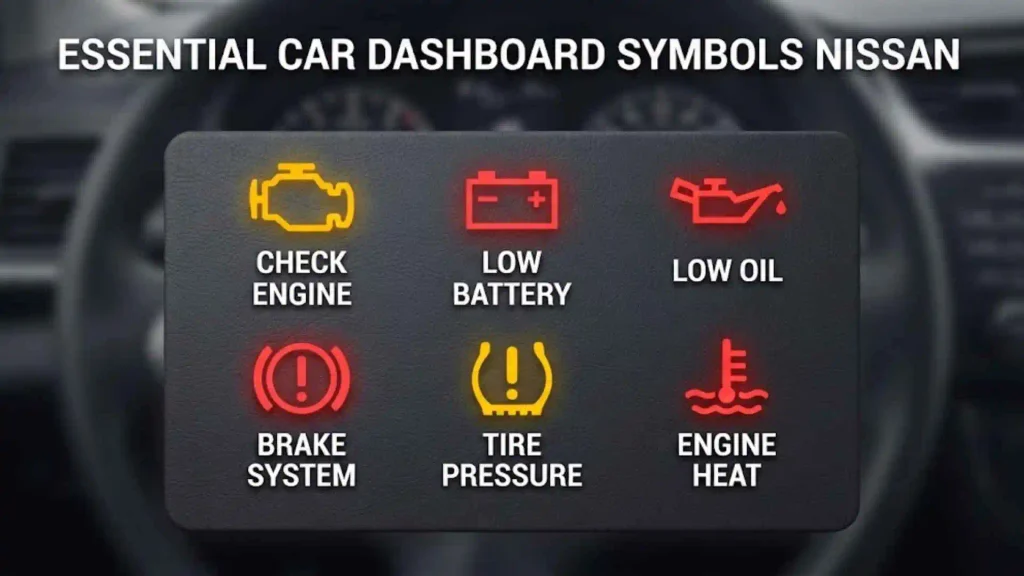

Car dashboard symbols and meanings Nissan
Nissan vehicles use warning and indicator lights for systems such as the engine, brakes, airbags, tire pressure, charging system, transmission, and driver assistance.
Common Nissan dashboard symbols include:
- Master warning light: Indicates that an accompanying warning or message may require attention.
- Malfunction indicator light: Indicates that the engine or emissions system has detected a fault.
- Oil pressure warning: Indicates a possible engine oil-pressure problem.
- Brake warning: May indicate a parking-brake or brake-system condition.
- ABS warning: Indicates a possible ABS fault.
- Airbag warning: Indicates a possible supplemental restraint-system problem.
- Tire pressure warning: Indicates low tire pressure or a TPMS issue.
- Intelligent Key warning: Can appear when the key system detects a related condition.
- Driver-assistance indicators: Equipped Nissan models can display additional warnings for systems such as lane assistance or collision avoidance.
The exact symbol set differs by Nissan model, year, engine, and equipment level.
Car dashboard symbols bulb failure warning light
A bulb failure warning light tells the driver that the vehicle may have detected a problem with one or more exterior lights. The symbol varies between manufacturers and can look like a light bulb or lamp with a warning mark.
Possible causes include:
- A burned-out exterior bulb
- An LED lighting fault
- A poor electrical connection
- A wiring problem
- A control-module or lighting-system fault
Check headlights, brake lights, turn signals, parking lights, and other exterior lamps when it is safe to do so. Some vehicles can detect individual lamp failures, while others provide only a general lighting warning.
Modern vehicles with LED lighting may require more than simply replacing a traditional bulb, so the manufacturer’s instructions should be followed.
Car dashboard symbols stop start warning light
The stop-start system automatically switches the engine off under certain conditions and restarts it when the driver is ready to move. A stop-start warning or indicator can show that the system is active, unavailable, or experiencing a fault.
Temporary deactivation can be normal. For example, the system may not operate when the battery charge is low, the engine has not reached the required temperature, climate-control demands are high, or other operating conditions are not satisfied.
If the stop-start warning remains on or is accompanied by another fault message, consult the vehicle manual. The exact symbol and behavior differ between manufacturers.
Mazda car dashboard symbols
Mazda vehicles use dashboard indicators for engine operation, braking, tire pressure, safety systems, lighting, and driver-assistance features.
Depending on the model, drivers may encounter:
- Check engine or malfunction indicator
- Oil-pressure warning
- Charging-system warning
- High engine-coolant temperature warning
- ABS warning
- Brake warning
- Airbag warning
- Tire-pressure monitoring warning
- Dynamic Stability Control indicators
- Lane-related indicators
- Smart Brake Support or other driver-assistance warnings
- Diesel-related indicators on applicable diesel models
Mazda also uses different dashboard layouts across generations and models. When a warning appears, compare it with the correct owner’s manual rather than relying on a symbol from another Mazda vehicle.
Ford car dashboard symbols and meanings
Ford dashboards can display a wide variety of indicators depending on the model, engine, transmission, and available technology.
Common Ford dashboard warnings include:
- Engine warning light: Indicates an engine or emissions-related fault.
- Oil pressure warning: Indicates a possible oil-pressure problem.
- Charging system warning: Indicates a possible electrical charging-system fault.
- Brake warning: Can relate to the parking brake or braking system.
- ABS warning: Indicates a possible anti-lock braking system fault.
- Airbag warning: Indicates a possible restraint-system issue.
- Tire pressure warning: Indicates low pressure or a TPMS-related issue.
- Transmission warning: Can indicate a powertrain or transmission-related problem.
- Stability-control indicators: Show system activity or a detected fault.
- Diesel particulate filter indicators: Found on applicable diesel models.
Ford uses different icons and messages across its model range, so the exact owner’s manual should be consulted for a specific warning.
Car dashboard symbols meaning
The meaning of a dashboard symbol depends on more than its shape. Color, flashing behavior, accompanying text, and the vehicle’s operating condition can all matter.
A useful approach is:
- Identify the symbol.
- Check its color.
- See whether it is steady or flashing.
- Read any message displayed on the instrument cluster.
- Check the owner’s manual.
- Take the recommended action.
For example, a red oil-pressure warning is not simply an information symbol. It may indicate a condition that can damage the engine if ignored. In contrast, a green turn-signal indicator generally just confirms that the indicator has been activated.
Indicator car dashboard symbols and meanings
Indicator lights usually tell you that a system or feature is active rather than reporting a serious fault.
Common indicators include:
| Indicator | Common meaning |
| Green turn arrow | Turn signal is active |
| Blue headlamp symbol | High beams are active |
| Green fog-lamp symbol | Fog lamps are active |
| Green cruise-control symbol | Cruise control is active or ready |
| Green EV/READY indicator | Vehicle is ready or operating in an electric-related mode, depending on model |
| Traction/stability indicator | Stability or traction system is operating |
| Lane indicator | Lane-assistance feature is active or available |
A flashing indicator can mean something different from a steady indicator. For that reason, always consider the symbol together with its behavior and the vehicle’s manual.
Car dashboard symbols Nissan
Nissan dashboard symbols vary across models such as Altima, Sentra, Rogue, Pathfinder, Frontier, Kicks, and other vehicles.
Nissan may use symbols for:
- Engine and emissions systems
- Oil pressure
- Charging system
- Braking and ABS
- Tire pressure
- Airbags
- Intelligent Key functions
- Driver assistance
- Forward collision warnings
- Lane-related systems
- Parking sensors and related technology
- Diesel systems on applicable vehicles
If you are searching for a specific Nissan symbol, include the vehicle model and year with your search. For example, “2024 Nissan Rogue dashboard symbols” is more precise than simply searching for “Nissan dashboard symbols.”
Frequently Asked Questions
What Do The Different Dashboard Light Colors Mean?
Colors provide a general indication of status. Red commonly signals a condition requiring prompt attention, amber or yellow usually indicates a warning or fault, and green or blue commonly provides information about an active feature. The exact meaning depends on the vehicle.
What Is The Most Important Dashboard Warning Light?
There is no single warning light that is universally the most important for every vehicle. Red warnings involving brakes, oil pressure, engine temperature, or other critical systems can require immediate attention. The owner’s manual provides the correct response for each warning.
Can Dashboard Symbols Be Different Between Car Brands?
Yes. Manufacturers can use different pictograms, names, colors, and messages for similar systems. Even vehicles from the same manufacturer may have different symbols depending on model, year, engine, and equipment.
Why Does A Dashboard Light Come On And Then Turn Off?
Many vehicles illuminate dashboard indicators briefly when the ignition is switched on as part of a system check. If a warning disappears after startup, that may be normal. If it remains illuminated or returns while driving, check the vehicle’s instructions.
Can I Drive With A Dashboard Warning Light On?
It depends on the symbol and the vehicle’s instructions. Some indicators simply show that a feature is active, while certain red or flashing warnings can indicate a serious problem. Read the accompanying message and owner’s manual, and stop safely when the instructions call for it.
Conclusion
Car dashboard symbols provide a quick way to understand what is happening inside a vehicle. Learning the common names and meanings of engine, brake, battery, temperature, tire, lighting, safety, and driver-assistance indicators makes it easier to recognize a warning when it appears.
Manufacturer-specific information is just as important as general knowledge. Toyota, Nissan, Hyundai, Ford, and Mazda can use different symbols and messages, while diesel, hybrid, and electric vehicles may have additional indicators that are not found on conventional gasoline cars.
When an unfamiliar symbol appears, identify its shape and color, read any message on the dashboard, and check the manual for your exact vehicle. A reliable symbol guide can help you understand the warning, but the manufacturer’s instructions should always be the final reference for what to do next.
Hi, I’m Sienna Brooks, and I believe that the right words can inspire, comfort, and empower people at every stage of life. For as long as I can remember, I’ve been drawn to meaningful quotes and the stories behind them. I love curating collections of inspirational, motivational, and heartfelt quotes that resonate with readers around the world.
Through my writing, I strive to help others find encouragement, whether they’re celebrating life’s happiest moments or navigating its biggest challenges. I believe that wisdom is timeless, and I’m passionate about sharing words that leave a lasting impact.
I am the author of Reflections in Words and The Journey of Inspiration, two books dedicated to exploring the beauty and power of timeless quotes.
Rowan Sinclair Rowan Sinclair
